Model: J1113F

130tons/1300kN Cold Chamber Die Casting Machine

specification

Item Value
Type Cold Chamber
Model J1113F
Die Locking Force 130tons
FOB Port Ningbo, China
Terms of payment L/C,Western Union,T/T

parameters

Parameter Value
Die locking force 1300kN/130tons
Size of moving platen(HxV) 660x667.5mm
Inner space between the bars (H x V) 430x430mm
Thickness of die block (Min./Max) 250/500mm
Stroke of moving platen 350mm
Ejection stroke 85mm
Ejection force 90kN
Injection force 150kN
Injection stroke 320mm
Diameter of shot sleeve 40mm 50mm
Dosage of fluid metal per shot (AL) 1.2mm 1.2mm
Injection Pressure 76.4MPa 119.4MPa
Max.Projecting area of casting 152cm2
Dry cycle 7s
Pipeline pressure 12MPa
Motor power 11kW
Machine weight 5000kg
Overall dimensions (L x W x H) 4800x1300x1800mm

features

ejection part of cold chamber die casting machine

Ejection part

blade pump of cold chamber die casting machine

Applying the American Vickers blade pump, which is durable, energy-saving and high effective.

press emitting and pressure increase system

Advanced press-emitting and pressure-increase system to ensure a precision regulation of the pressure, speed and starting speed in each part to guarantee the quality of the casting pieces.

toggle system

Centralized lubrication device for the toggle system capable of adjusting the lubrication period, time and amount proper lubrication of the toggle system can increase the lifetime of machine and reduce maintenance.

valve of cold chamber die casting machine

Applying German Rexroth proportional pressure valve and proportional flow valve for controlling the pressure and flow so that the mechanism can run quickly, stably, safely, reliably and energy saving .

hydraulic valve and European sealing components

Applying German Rexroth hydraulic valve and European sealing components, providing a long term good work and leak-free condition of the hydraulic system.

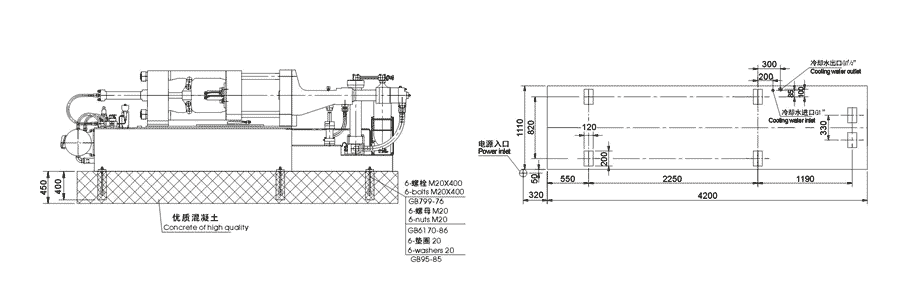

installation

installation of 130tons/1300kN Cold Chamber Die Casting Machine

mold plate size

mold plate size of 130tons/1300kN Cold Chamber Die Casting Machine
