Hydraulic BSP Hose Fitting

Product Name: BSP hose fitting12211
Product Category: Hydraulic Hose fitting
Hydraulic hose fitting&joint, many series BSP hose fittings can be chosen here. Any questions and comments are great appreciated here.

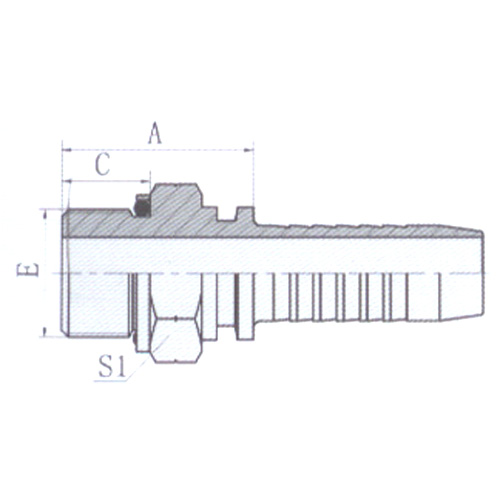

PART NO.	THREAD E	HOSE BORE		O RING	DIMENSIONS
		DN	DASH		A	C	S1
12211-04-04	G1/4"×19	6	04	O111	23.5	11	19
12211-04-06	G1/4"×19	10	06	O111	23.5	11	19
12211-06-06	G3/8"×19	10	06	O113	26.5	12	22
12211-08-04	G1/2"×14	6	04	O115	33.5	14	27
12211-08-06	G1/2"×14	10	06	O115	33.5	14	27
12211-08-08	G1/2"×14	12	08	O115	34	14	27
12211-10-10	G5/8"×14	16	10	O910	36	15.5	30
12211-12-10	G3/4"×14	16	10	O119	33.5	15.5	32
12211-12-12	G3/4"×14	20	12	O119	38	15.5	32
12211-12-16	G3/4"×14	25	16	O119	36	15.5	32
12211-16-16	G1"×11	25	16	O217	44.5	18.5	41
12211-20-20	G1.1/4"×11	32	20	O222	46	20	50

    Hydraulic BSP Hose Fitting has been presented above, want more similar products, please click Hydraulic BSP Hose Fittings,hydraulic BSP tube connections,BSP fitting.
    Our Hydraulic BSP Hose Fitting is good in quality and competitive in price. We manufacture Hydraulic BSP Hose Fitting and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
